Tapped Density Tester - TD Series

Category： Air Jet Sieve & Lab Units
Repeatability Accuracy ≤ 1%
Tests 3 Samples at a Time
Intelligent Operating System
Unique Technology
INQUIRY EMAIL

Product Description:

Tap density refers to filling a certain amount of powder into a specific container and vibrating it at a certain frequency and amplitude. When the volume of the powder no longer decreases, the volume of the powder is read, and then the weight of the powder is divided by the volume. Get the tap density.

Tungkula Tapped Density Tester - TD Series (TD-1, TD-2, TD-3) is an instrument specially developed by Tungkula Particle Machinery Equipment Co., Ltd. to test the tap density of powder.

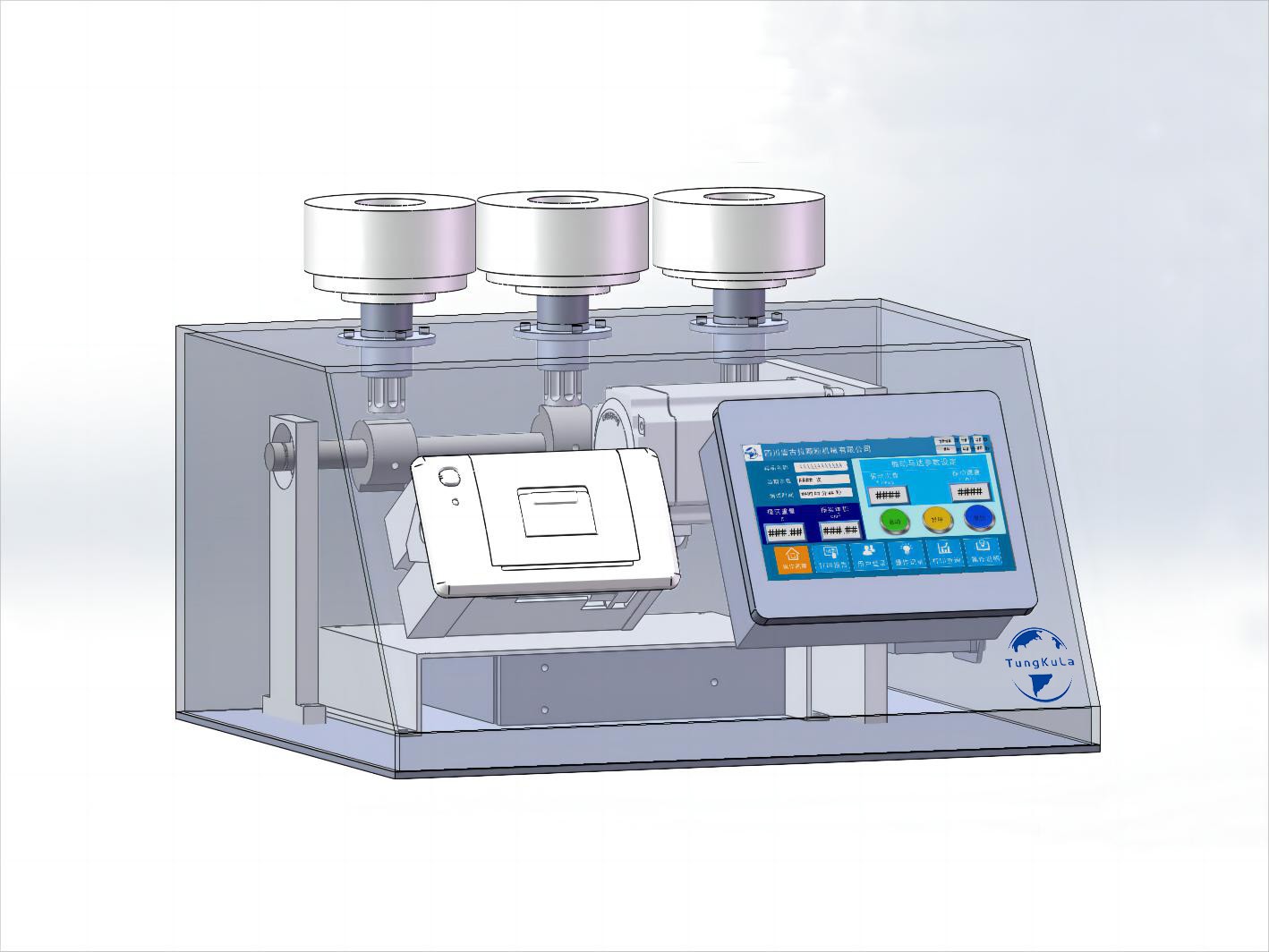

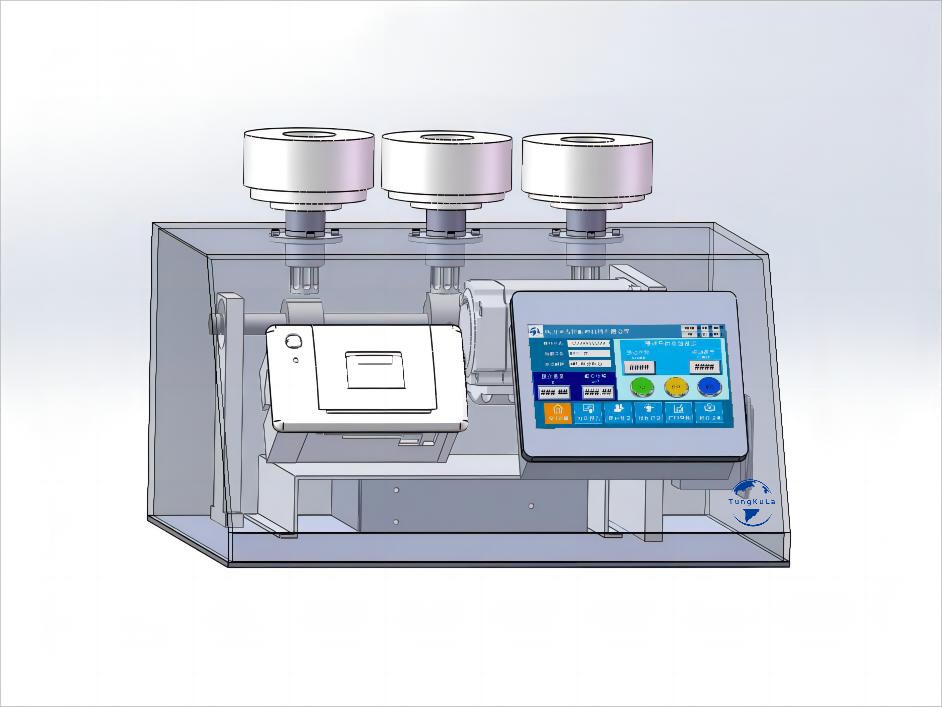

Tapped Density Tester - TD Series (TD-1, TD-2, TD-3) consists of counting system, control system, driving mechanism, actuator, micro printer and accessory spare parts. It has the characteristics of easy operation, durability and accurate testing.

Application Areas

It is suitable for fields such as non-metallic powders, metal powders, pharmaceuticals, chemicals, batteries, abrasives, scientific research and teaching, etc. It is an ideal instrument for tap density testing in the powder industry.

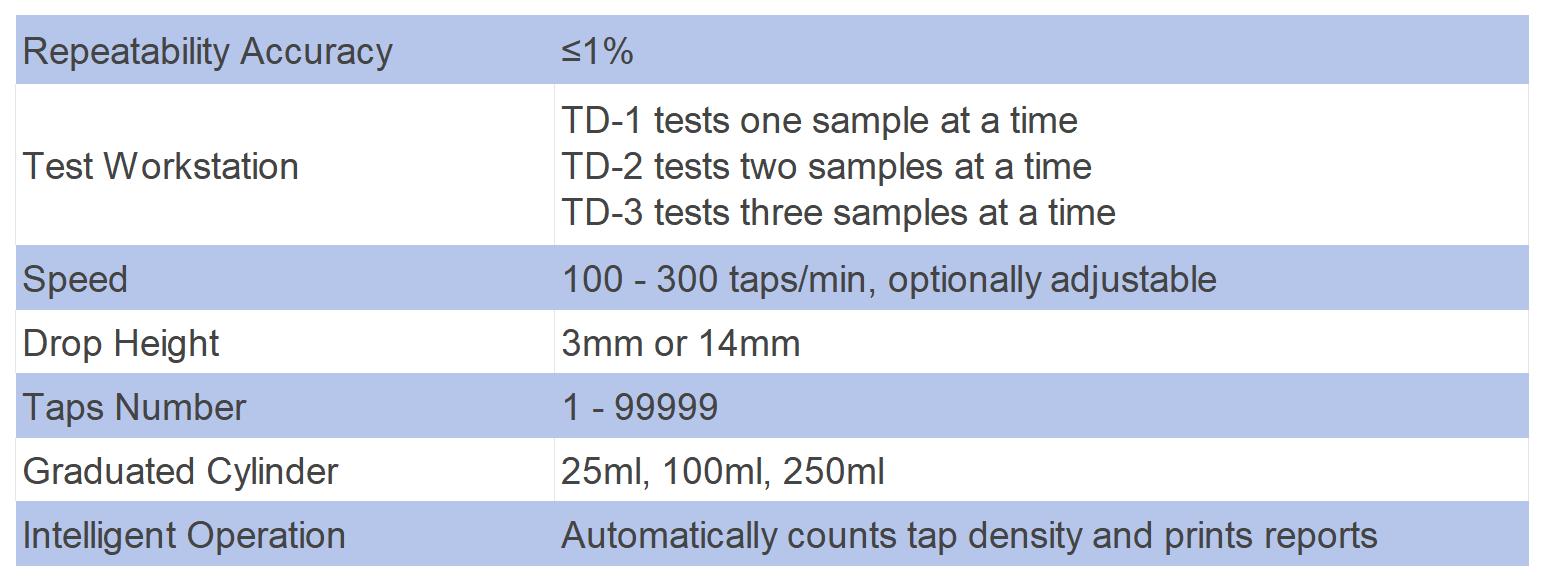

Performance Indicators

Unique Technology

◆ It complies with the Chinese national standard GB/T 21354-2008, and the international standard ISO3953:1993. It complies with the regulations on the tap density of drugs in the United States Pharmacopoeia and the regulations on the tap density of drugs in the 2020 version of the Chinese Pharmacopoeia. It is a universal tap density instrument.

◆ Intelligent operating system, input basic information such as tester, test sample, frequency and number of times and start the tapping operation with one click. After completion, enter the tapping weight and vibration volume and automatically calculate the vibration volume. The report formwhich can be printed out through the instrument's built-in printer, greatly saves time in calculation, recording and statistics.

◆ Tungkula TD Series adopts the patented horizontal rotation technology, which vibrates up and down while rotating horizontally to keep the flatsurface of the powder in the measuring cylinder, effectively improving the measurement accuracy.

◆ To improve efficiency, Tungkula designed TD-2 for testing 2 samples at the same time and TD-3 tap for testing 3 samples at the same time.
